Curve system Trimless Recessed

location：

Home page

Features

Thanks to the flexible design, the curve system can make the shapes whatever you imagine. What you need to do is providing the CAD drawing of the shape you want, or provide us the space drawing, we design the shapes for you.

Product Details

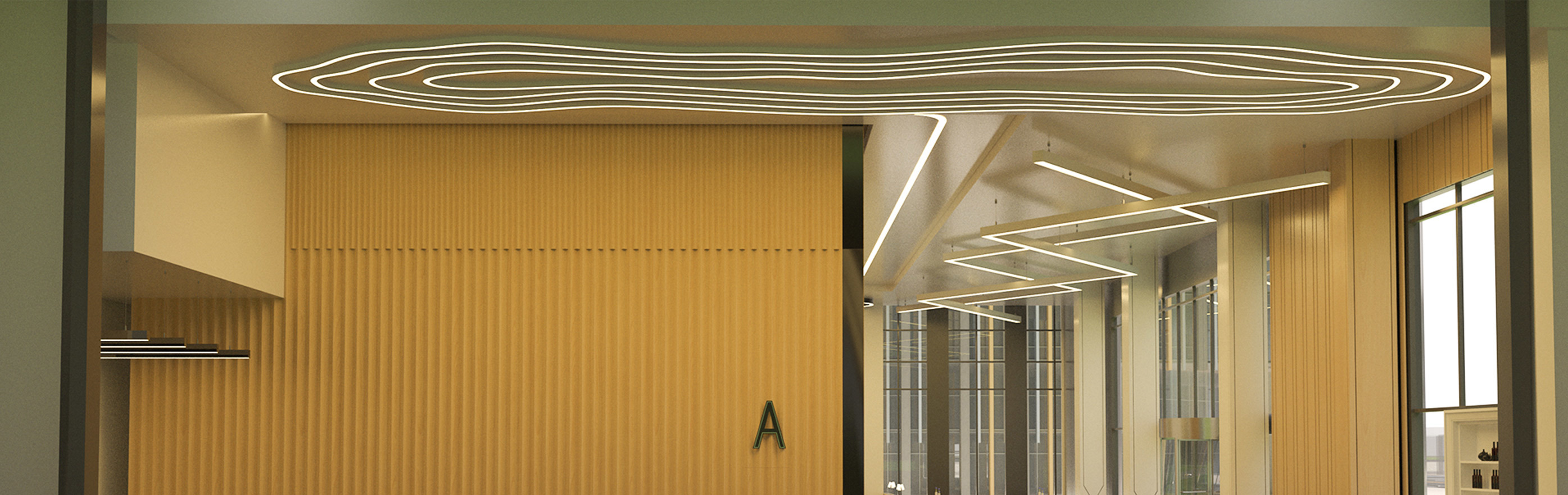

Art and imaginative

Curve system is a amazing system, the flexible design can make it be bent into any curves, there are three kinds of profiles for option, also,opal diffuser and micro-prismatic diffuser for choice. the light direction can be direction ,and direction& indirection. Curve system can make whatever you imagine.

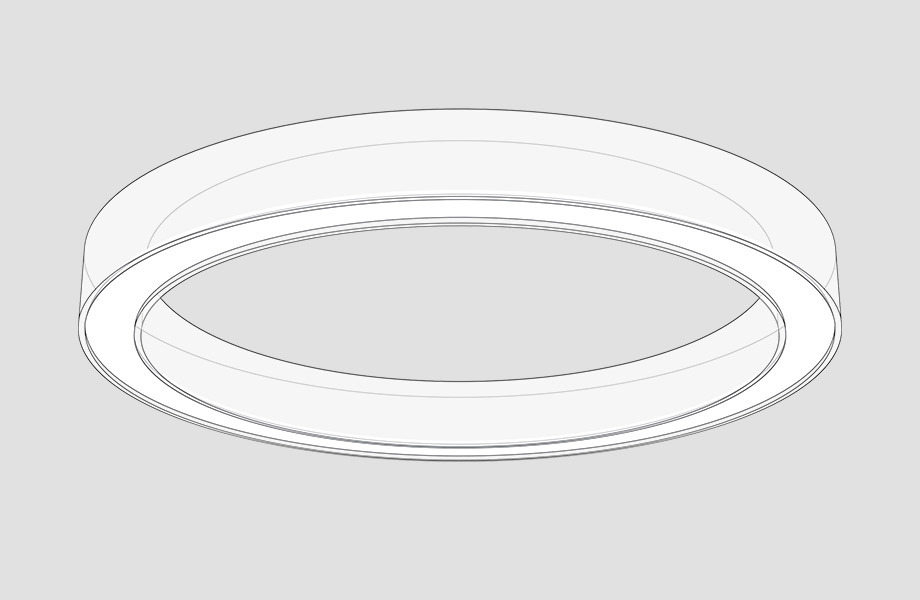

Standard Circle

We prepare the standard circle for each profile, moreover, for make the circle perfect ,each standard circle is with a complete diffuser , the whole light is without any combination, so they are more than perfect !

Customize circle as you want

Except the standard circle, we are also able to customize the circle as you want ,you only need to let us know the diameter for you,we will be responsible the rest.

Downloads

Curve system broucher

Specification

Item
Length
Section Size
Link
Voltage
Power
DOWNLOAD

Cv40-450
450mm
W40xH60mm
single Light / linkable
220-240VAC
10W

Cv40-640
640mm
W40xH60mm
single Light / linkable
220-240VAC
15W

Cv40-900
900mm
W40xH60mm
single Light / linkable
220-240VAC
25W

Cv40-1200
1200mm
W40xH60mm
single Light / linkable
220-240VAC
35W

Cv44-450
450mm
W44xH55mm
single Light / linkable
220-240VAC
10W

Cv44-640
640mm
W44xH55mm
single Light / linkable
220-240VAC
15W

Cv44-900
900mm
W44xH55mm
single Light / linkable
220-240VAC
25W

Cv44-1200
1200mm
W44xH55mm
single Light / linkable
220-240VAC
35W

Cv60-450
450mm
W60xH80mm
single Light / linkable
220-240VAC
20W

Cv60-640
640mm
W60xH80mm
single Light / linkable
220-240VAC
30W

Cv60-900
900mm
W60xH80mm
single Light / linkable
220-240VAC
40W

Cv60-1200
1200mm
W60xH80mm
single Light / linkable
220-240VAC
60W
