M40 Track Mounted

location：

Home page

Features

The M40 linear light adopts a simple and modern design style with clean and sleek lines, creating a beautiful and eye-catching appearance.

Product Details

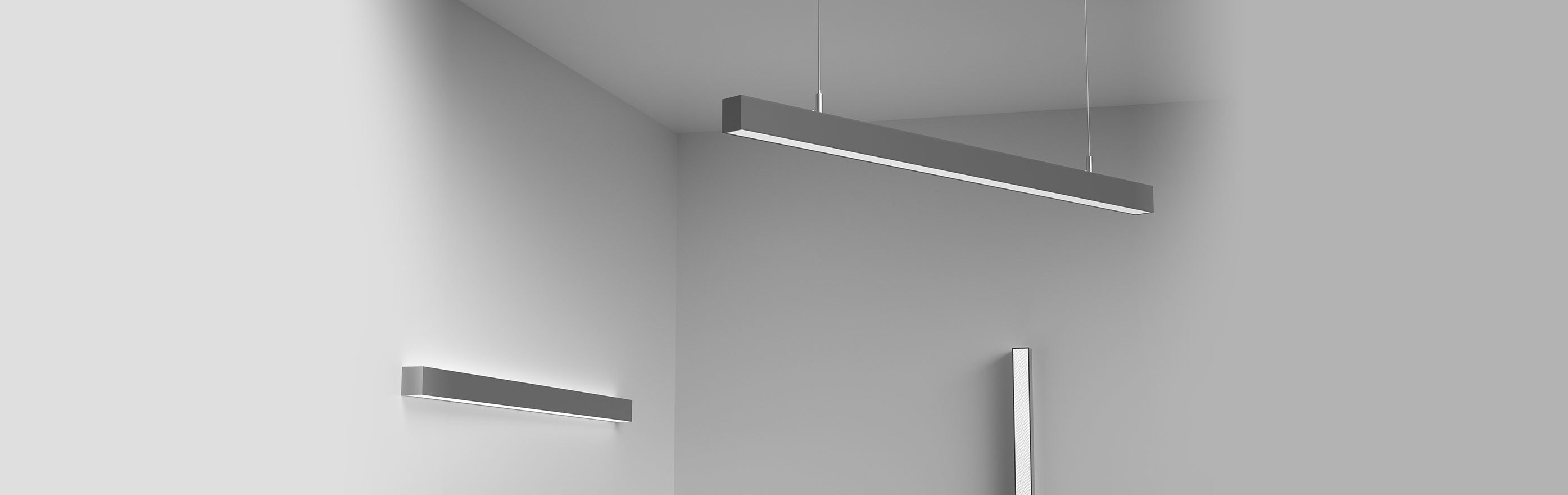

Wide Rang Options

Available for surface-mounted,wall mounted,track mounted,suspended options.

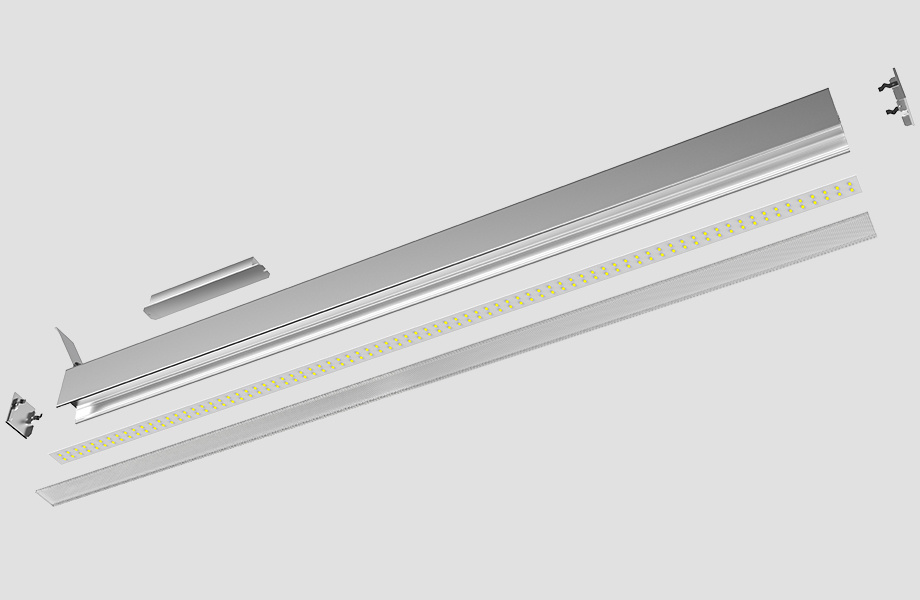

Explosion diagram and optional accessories

Equipped with magnetic suction technology, the product is easy to maintain. Customers can quickly assemble and disassemble the light by simply attaching or detaching it, providing a smart and efficient lighting solution for the daily life. Suitable for various environments such as living rooms, bedrooms, dining rooms, and offices, the M40 light can create a comfortable, warm, and elegant lighting atmosphere for users.

Slim and convenient

The profile is made of high-quality 6063 aluminum, which quickly dissipates heat, ensuring stable temperature and high performance of the light. The screw-free end cap design integrates the end cap and the lamp body, making it more aesthetically pleasing and fashionable. Equipped with Osram LEDs, the light provides users with high-quality lighting experience with excellent light efficiency and color performance. The built-in Osram driver provides stable power supply to ensure the normal operation of the light while ensuring its energy-saving and environmentally friendly features. With its excellent optical design, M40 is compatible with OPAL and MPR diffusers (UGR <19), achieving better lighting effects for users.

Downloads

M40 Linear light broucher

Specification

Item
Length
Section Size
Link
Voltage
Power
DOWNLOAD

M40-565
565mm
W44xH55mm
single Light
220-240VAC
10-18W

M40-845
845mm
W44xH55mm
single Light
220-240VAC
15.5-29W

M40-1125
1125mm
W44xH55mm
single Light
220-240VAC
20.5-36W

M40-1405
1405mm
W44xH55mm
single Light
220-240VAC
26-45W

M40-1685
1685mm
W44xH55mm
single Light
220-240VAC
31-54W

M40-1965
1965mm
W44xH55mm
single Light
220-240VAC
36-63W

M40-2245
2245mm
W44xH55mm
single Light
220-240VAC
41-72W
