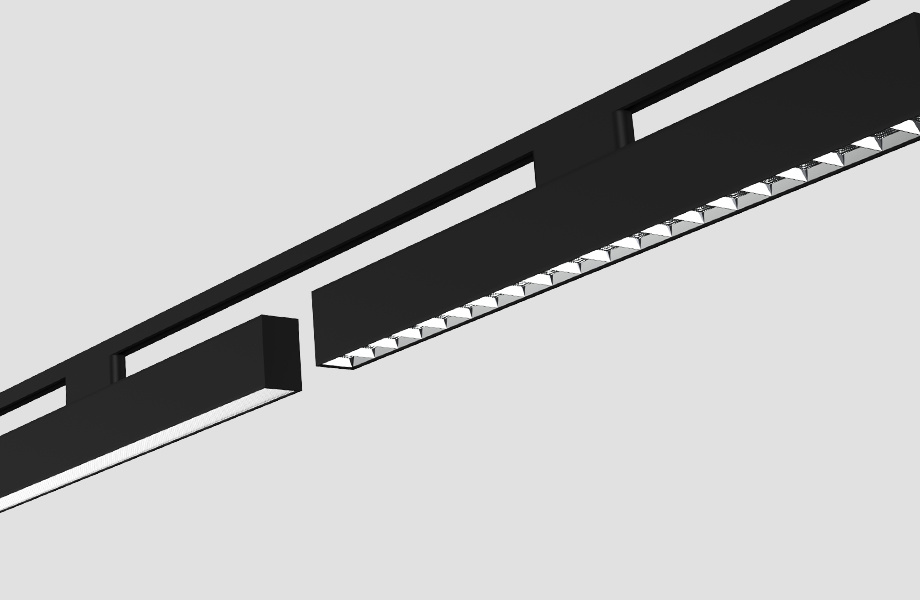

i40 Track Mounted mix modules

location：

Home page

Features

Born for Elegance, emphasizes the importance of attention to detail and the pursuit of aesthetic values, aiming to create a more beautiful,elegant, comfortable, and enjoyable lighting experience for people.

Product Details

Wide Range Options

With 7 different mounting options, a wide range of creative lighting design options is available. Choose from trimless recessed, trim recessed, surface mounted, wall mounted, track mounted, indirect suspended, or suspended mounting options.

Explosion diagram and optional accessories

Unique fast joint design

Similar to the i60 series, the i40 series features a unique quick assembly design. The LED modules simply block into each other by way of a connector pin. The profiles when joined, use a "fast connector" to join different parts of the fixture, including the "start," "middle," and "end" sections.

Downloads

I40 linear lighting system broucher

Specification

Item
Length
Section Size
Link
Voltage
Power
DOWNLOAD

I40-760
765mm
W44xH75mm
single Light / linkable
220-240VAC
13.5-24W

I40-850
860mm
W44xH75mm
single Light / linkable
220-240VAC
15.5-27W

I40-940
955mm
W44xH75mm
single Light / linkable
220-240VAC
17-30W

I40-1030
1050mm
W44xH75mm
single Light / linkable
220-240VAC
18.9-33W

I40-1120
1145mm
W44xH75mm
single Light / linkable
220-240VAC
20.6-36W

I40-1210
1240mm
W44xH75mm
single Light / linkable
220-240VAC
22.3-39W

I40-1300
1335mm
W44xH75mm
single Light / linkable
220-240VAC
24-42W

I40-1390
1430mm
W44xH75mm
single Light / linkable
220-240VAC
25.7-45W

I40-1480
1525mm
W44xH75mm
single Light / linkable
220-240VAC
27.4-48W

I40-1570
1620mm
W44xH75mm
single Light / linkable
220-240VAC
29.1-51W

I40-1660
1715mm
W44xH75mm
single Light / linkable
220-240VAC
30.9-54W

I40-1750
1810mm
W44xH75mm
single Light / linkable
220-240VAC
32.5-57W

I40-1840
1905mm
W44xH75mm
single Light / linkable
220-240VAC
34.3-60W

I40-1930
2000mm
W44xH75mm
single Light / linkable
220-240VAC
36-63W

I40-2020
2095mm
W44xH75mm
single Light / linkable
220-240VAC
37.7-66W

I40-2110
2190mm
W44xH75mm
single Light / linkable
220-240VAC
39.4-69W

I40-2200
2285mm
W44xH75mm
single Light / linkable
220-240VAC
41.7-72W
