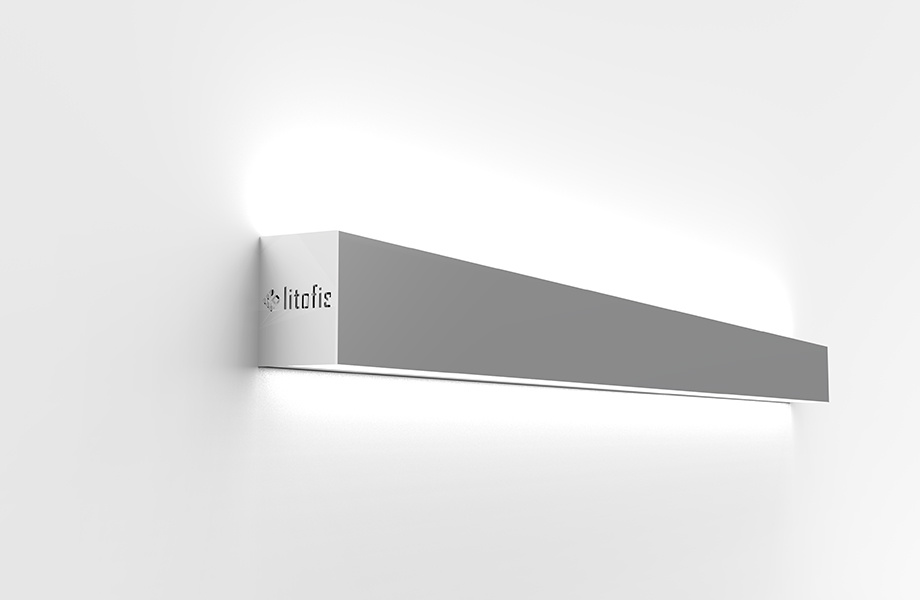

SMP60 Wall Mounted

location：

Home page

Features

The SMP60 linear system is a completely different design from the I60 system. Its unique magnetic cover (MTC) design makes installation and maintenance incredibly easy.Additionally, it can be equipped with a fast-link reserved function, and there are three CCT switchable functions to choose from, making it very convenient for stocking.This system is versatile and can meet the requirements of both single light and linkable systems, as well as different CCT options.Furthermore, with the 280mm step length ranging from 565mm to 2245mm and a wide range of corner options, it can be formed into almost any shape.It can be suspended, surface mounted, wall mounted, or track mounted, providing flexibility for various installation needs. Opal and micro-prismatic diffusers are also available.In summary, the SMP60 linear system is an excellent lighting solution for distributors to distribute due to its ease of installation and maintenance, versatility in meeting different requirements, and adaptability to different shapes and installation needs.

Product Details

Wide Rang Options

SMP60 has an extremely wide range of options to meet the demands of different projects. There are 4 different installation options available, 3 standard profile colors to choose from, and customized colors can be provided based on customer preference. There are also 2 types of diffusers available, and the diffusers can be ordered in 25m/roll as an option.Additionally, there are 8 corners available in different shapes, and customized shapes can be provided as per customer preference.Finally, there are 4 different control options available.

Explosion diagram and optional accessories

Outstanding Flexibility

The SMP60 linear system offers incredible flexibility. Whether your end customer requires a single light or a continuous-run system, the SMP60 in your warehouse can fully meet both of them When customers need a continuous-run system, they only need to remove the tool-free end caps, install the fast and zero-light-leakage connection kit, then, they will get a perfect Continuous-run system. Additionally, the SMP60 features a magnetic top cover that is very easy to install and maintain, greatly improving efficiency for both installation and maintenance.

Downloads

SMP60 linear lighting system broucher

Specification

Item
Length
Section Size
Link
Voltage
Power
DOWNLOAD

SMP60-565
565mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

SMP60-845
845mm
W58xH82mm
single Light / linkable
220-240VAC
15.5-29W

SMP60-1125
1125mm
W58xH82mm
single Light / linkable
220-240VAC
20.5-36W

SMP60-1405
1405mm
W58xH82mm
single Light / linkable
220-240VAC
26-45W

SMP60-1685
1685mm
W58xH82mm
single Light / linkable
220-240VAC
31-54W

SMP60-1965
1965mm
W58xH82mm
single Light / linkable
220-240VAC
36-63W

SMP60-2245
2245mm
W58xH82mm
single Light / linkable
220-240VAC
41-72W

SMP60-L090
295x295mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

SMP60-L120
305x305mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

SMP60-L060
305x305mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

SMP60-L150
305x305mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

SMP60-T090
531x295mm
W58xH82mm
single Light / linkable
220-240VAC
15.5-29W

SMP60-Y120
322mm/Arm
W58xH82mm
single Light / linkable
220-240VAC
15.5-29W

SMP60-C090
531x531mm
W58xH82mm
single Light / linkable
220-240VAC
20.5-36W

SMP60-C060
531x531mm
W58xH82mm
single Light / linkable
220-240VAC
20.5-36W
