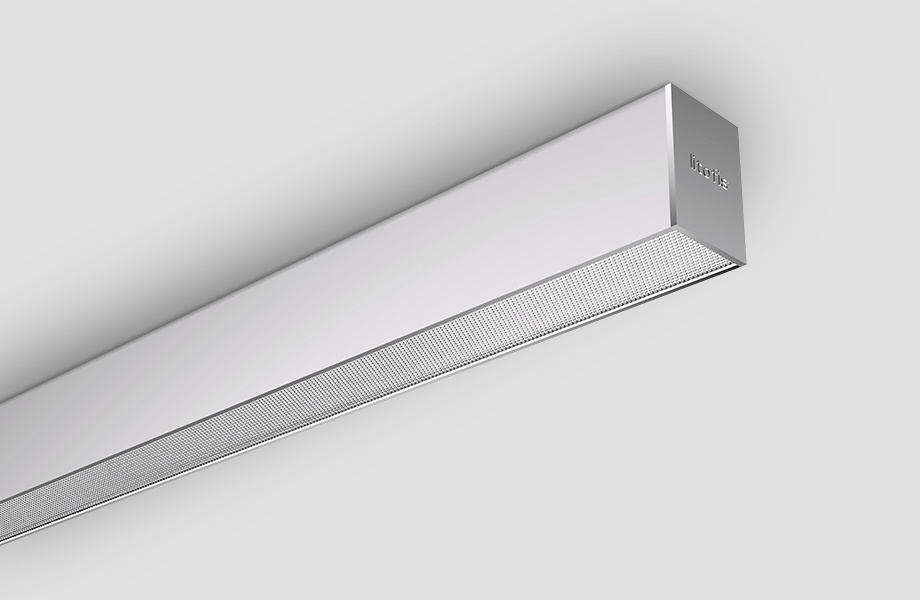

i60 Surface Mounted

location：

Home page

Features

i60 Linear lighting System is a powerful system that features a modular designwhich makes it very flexible and allows it to be quickly adapted toany length or shape.Moreover, it has a fast connection design which make it only takeless than 10 seconds to join two linear lights together.The system has various installation options, including suspendedsurface-mounted,trim recessed, trimless recessed, wall-mountedand track mounted.Ilt also offers two types of diffusers, opal and micro-prismaticwhich help to achieve UGR 19,and both diffusers can comes in rolls of 25m as option.The system s zero light leakage design ensures that there is no light leakagemaking it perfect for any lighting application.In summary,Unleash your imagination andcreate lighting designs beyond your wildest dreams by i60 linear lighting system.

Product Details

Powerful System Ability

i60 adopts litofis unique design of the light leakage prevention,it makes the whole system completely "0" light leakageMorever, it's with 10 second fast connection kits,which the continuous-run link so efficiently. Each line may consist of "start”"Middle""END' "START” is with IPC end cap;"Mlddle" is without end cap;“END" is with IPC end cap ,too AC Feed cable only needs to connect to the “Start"and“MIDDLE”"END” doesn't need feed cable.Each line must have 1PC(but only PC)“Start” and IPC“END"also can have no “Middle",or have 1 or many "MIDDLE".

Modular Design

i60 adopts litofis unique modular design, the shortest module is 70mm.Thanks to the modular design, it makes so flexible to make the linear intoany different lengths, and shapes.Moreover, it helps us to easy to manage the inventory, and make us be able to deliveryfinished linear lights according to customers' the projects need so fast.

Wide rang of options

i60 has an extremely wide range of options to meet the demands of different projects.There are 7 different installation options available, 3 standard profile colors to choose from,and customized colors can be provided based on customer preference. There are also 2 typesof diffusers available, and the diffusers can be ordered in 25m/rollas an option.Additionally,there are 8 corners available in different shapes, and customized shapes can be provided asper customer preference.Finally, there are 3 different control options available.

Downloads

I60 linear lighting system broucher

Specification

Item
Length
Section Size
Link
Voltage
Power
DOWNLOAD

I60-565
565mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

I60-635
635mm
W58xH82mm
single Light / linkable
220-240VAC
11.5-20.5W

I60-705
705mm
W58xH82mm
single Light / linkable
220-240VAC
13-22.5W

I60-775
775mm
W58xH82mm
single Light / linkable
220-240VAC
14-25W

I60-845
845mm
W58xH82mm
single Light / linkable
220-240VAC
15.5-29W

I60-915
915mm
W58xH82mm
single Light / linkable
220-240VAC
17-29.5W

I60-985
985mm
W58xH82mm
single Light / linkable
220-240VAC
18-31.5W

I60-1055
1055mm
W58xH82mm
single Light / linkable
220-240VAC
19.5-34W

I60-1125
1125mm
W58xH82mm
single Light / linkable
220-240VAC
20.5-36W

I60-1195
1195mm
W58xH82mm
single Light / linkable
220-240VAC
22-38.5W

I60-1265
1265mm
W58xH82mm
single Light / linkable
220-240VAC
23-40.5W

I60-1335
1335mm
W58xH82mm
single Light / linkable
220-240VAC
24.5-43W

I60-1405
1405mm
W58xH82mm
single Light / linkable
220-240VAC
26-45W

I60-1475
1475mm
W58xH82mm
single Light / linkable
220-240VAC
27-47.5W

I60-1545
1545mm
W58xH82mm
single Light / linkable
220-240VAC
28-49.5W

I60-1615
1615mm
W58xH82mm
single Light / linkable
220-240VAC
29.5-52W

I60-1685
1685mm
W58xH82mm
single Light / linkable
220-240VAC
31-54W

I60-1755
1755mm
W58xH82mm
single Light / linkable
220-240VAC
32-56.5W

I60-1825
1825mm
W58xH82mm
single Light / linkable
220-240VAC
33.5-58.5W

I60-1895
1895mm
W58xH82mm
single Light / linkable
220-240VAC
35-61W

I60-1965
1965mm
W58xH82mm
single Light / linkable
220-240VAC
36-63W

I60-2035
2035mm
W58xH82mm
single Light / linkable
220-240VAC
37.5-65.5W

I60-2105
2105mm
W58xH82mm
single Light / linkable
220-240VAC
39-67.5W

I60-2175
2175mm
W58xH82mm
single Light / linkable
220-240VAC
40-70W

I60-2245
2245mm
W58xH82mm
single Light / linkable
220-240VAC
41-72W

I60-2315
2315mm
W58xH82mm
single Light / linkable
220-240VAC
42.5-53W

I60-2385
2385mm
W58xH82mm
single Light / linkable
220-240VAC
44-55W

I60-2455
2455mm
W58xH82mm
single Light / linkable
220-240VAC
45.5-57W

I60-L090
295x295mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

I60-L120
305x305mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

I60-L060
305x305mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

I60-L150
305x305mm
W58xH82mm
single Light / linkable
220-240VAC
10-18W

I60-T090
531x295mm
W58xH82mm
single Light / linkable
220-240VAC
15.5-29W

I60-Y120
322mm/Arm
W58xH82mm
single Light / linkable
220-240VAC
15.5-29W

I60-C090
531x531mm
W58xH82mm
single Light / linkable
220-240VAC
20.5-36W

I60-C060
531x531mm
W58xH82mm
single Light / linkable
220-240VAC
20.5-36W
